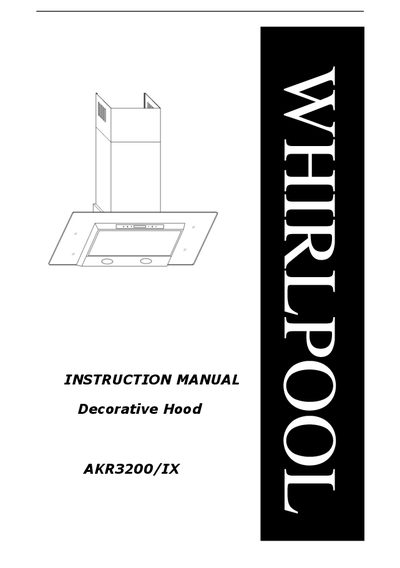

This document is an instruction manual for the Decorative Hood AKR3200/IX, providing information about the features and characteristics of the product.
This manual provides step‑by‑step instructions for installing the Whirlpool AKR3200/IX decorative hood, including wall mounting, chimney fitting, and electrical connections. It also outlines safety recommendations, required tools, and the need for qualified technicians.
Additional sections cover routine maintenance such as cleaning the grease filter, replacing the halogen lamp, and troubleshooting common issues like lamp failure or excessive noise. Proper use guidelines and disposal instructions are also included.
| Model | AKR3200/IX |
|---|---|
| Rated Voltage | 220‑240 V |
| Rated Power Frequency | 50 Hz |
| Light Power | 2 × 20 W |
| Motor Power | 320 W |
| Total Power | 360 W |
| Maximum suction | 1000 m³/h |
| Diameter of Exhaust Pipe | 150 mm |
| Product Dimensions (L×W×H) | 900 mm × 400 mm × 857‑1332 mm |
| Net Weight | 28 kg |
| Gross Weight | 39.76 kg |
The minimum distance is 750 mm from the cooker hood to a gas hob.
Disconnect the hood from the main power supply before any cleaning or maintenance work.
A loud noise can be caused by a filter that is not properly fitted.
