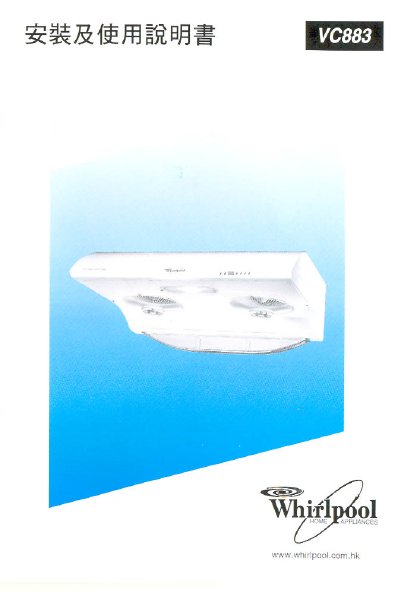

This manual explains how to safely install the Whirlpool VC883 range hood. It includes required clearances, recommended exhaust pipe sizes, mounting procedures, and electrical connections. Safety notes stress that installation must be performed by a qualified technician and that the unit must be grounded.
The guide also covers operation, cleaning, and maintenance of the hood, including automatic cleaning cycles, oil cup removal, and regular servicing. Technical specifications such as dimensions, weight, voltage, and motor power are listed for reference. This manual is written in Chinese.
| Net Weight | 15.5 kg |
|---|---|
| Gross Weight | 18 kg |
| Dimensions (W×H×D) | 537 mm × 200 mm × 712 mm |
| Packing Dimensions | 615 mm × 277 mm × 796 mm |
| Electrical Supply | 220‑240 V, 50 Hz |
| Exhaust Pipe Diameter | 150 mm |
| Lighting System | 6 W bulb |
| Motor Power | 140 W |
Both the exterior and interior should be cleaned at regular intervals to keep the hood long‑lasting; the manual recommends cleaning after about 30 hours of use.
A 6‑inch diameter exhaust pipe is recommended; a 5‑inch pipe can also be used if necessary.
Installation must be carried out by a qualified technician or authorized service agent.
