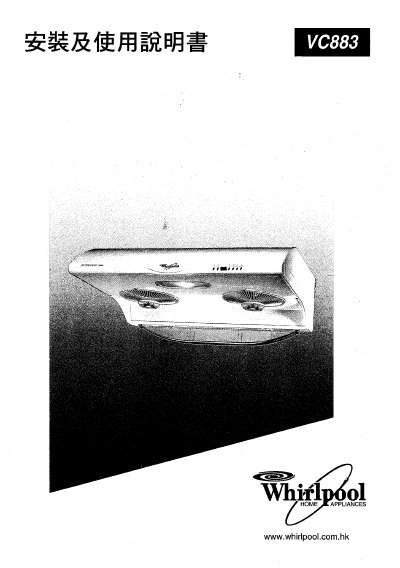

This guide explains how to install the Whirlpool VC883 range hood safely and correctly. It covers power disconnection, mounting, wiring, and connecting the exhaust pipe, as well as the required tools and clear diagrams.
The manual also includes maintenance tips such as cleaning the fan protection grille, oil retainers, and oil cup, plus safety warnings and the full technical specifications of the hood.
| Net Weight | 15.5 kg |
|---|---|
| Gross Weight | 18 kg |
| Dimensions (D × H × W) | 537 × 200 × 712 mm |
| Packing Dimensions (D × H × W) | 615 × 277 × 796 mm |
| Electrical Specification | 220 V, 50 Hz |
| Motor Transmission | Twin Motor |
| Outlet Pipe Diameter | 150 mm |
| Lighting System | 60 W, Bulb |
| Motor Load | 140 W |
Detach the fan protection grille by removing the screws with a screwdriver, clean it, and reinstall it after cleaning.
The power supply must be disconnected before starting any installation work.
