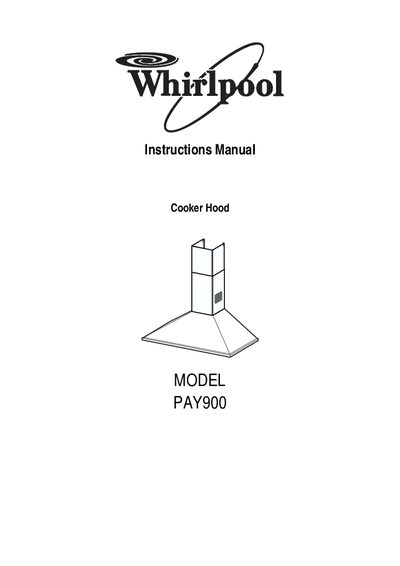

This manual introduces the features and characteristics of PAY900 cooker hood products, including appearance size, component composition, use methods, cleaning and maintenance.
This guide provides the characteristics and component list for the Whirlpool PAY900 cooker hood, including dimensions, hood body parts, telescopic chimney sections, air outlet connections and the required installation hardware such as brackets, wall plugs and screws.
It also explains how to operate the hood (light switch, motor speed settings) and details maintenance procedures for cleaning metal grease filters, replacing the activated charcoal filter and changing the 40 W incandescent lamp.
| Maximum dimensions (mm) | 785 x 550 |
|---|---|
| Minimum dimensions (mm) | 60 x 240 |
| Light bulb type | 40 W incandescent |
The filters must be cleaned every 2 months of operation, or more frequently for heavy usage.
Remove the metal grease filters, then remove the saturated activated charcoal filter and fit a new one before reinstalling the metal grease filters.
A 40 W incandescent lamp is used.
