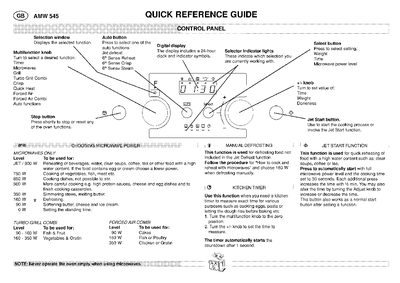

This Quick Reference Guide explains the control panel layout, auto functions, and cooking modes of the Whirlpool AMW 545 microwave oven. It shows how to select functions such as Jet Defrost, Turbo Grill, Forced Air, and Quick Heat, and how to adjust time, weight, and doneness using the multifunction and +/- knobs.
The guide also covers safety precautions, installation steps, and proper use of accessories like the turntable, crisp‑plate, and wire rack. It includes technical specifications, wiring warnings, and service information to help users operate the oven safely and efficiently.
| Supply voltage | 230 V / 50 Hz |
|---|---|
| Rated Power Input | 2800 W |
| Fuse rating | 16 A (UK 13 A) |
| Microwave output power | 300 W |
| Forced Air power | 1200 W |
| Outer dimensions | 455 × 505 × 560 mm |
| Oven compartment dimensions | 210 × 450 × 420 mm |
Press the Stop button briefly to stop or reset any of the oven functions.
Verify that the voltage on the rating plate matches your home supply, ensure the door seals properly, and confirm the appliance is undamaged before mounting.
Yes, the earthing of the appliance is compulsory.
No, metal or aluminum wrappings must not be used as they can cause sparking and damage the oven.
