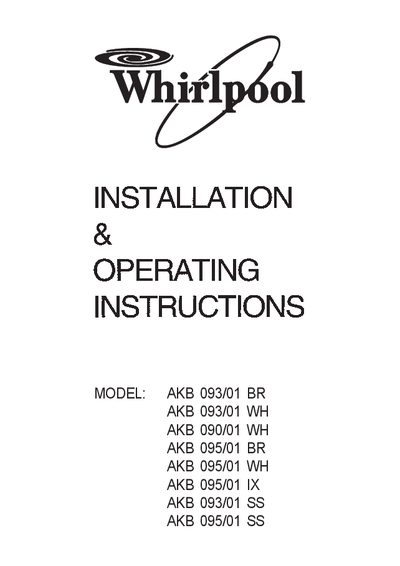

This manual provides step‑by‑step guidance for installing Whirlpool AKB series cooker hoods. It details wall and cabinet mounting, required clearances, wiring colour codes, and ducting connections, ensuring safe and compliant installation.
The guide also explains normal operation, including fan speed selection, worktop illumination, filter maintenance, and cleaning procedures, helping users achieve optimal performance and longevity of the hood.
| Depth | 485 mm (19 1/8 in) |
|---|---|
| Height | 150 mm (6 in) |
| Minimum installation height | 65 cm (25.5 in) above hotplate |
| Duct diameter | 100 mm (4 in) |
| Worktop lamp type | 40 W clear, E14 screw thread |
The hood must be positioned at least 65 cm (25.5 in) above the hotplate.
The hood uses 40 W clear lamps with an E14 (small Edison) screw thread.
Charcoal filters should be replaced at least every six months, or more often with heavy use.
Green‑yellow for earth, blue for neutral, and brown for live.
