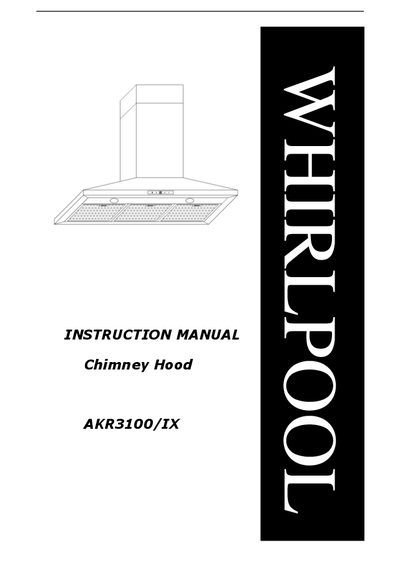

This manual introduces the features and characteristics of the AKR3100/IX cooker hood.
This manual provides step‑by‑step instructions for installing and using the Whirlpool AKR3100/IX chimney hood. It includes safety recommendations, required tools, and detailed procedures for fixing the hood to the wall, connecting the exhaust pipe, and completing electrical connections.
Additional sections cover routine maintenance, cleaning tips, component identification, technical specifications, and a troubleshooting guide to help resolve common issues such as lamp failure or poor exhaust performance.
| Rated Voltage | 220‑240V |
|---|---|
| Rated Power Frequency | 50Hz |
| Light Power | 2 × 20W |
| Motor Power | 320W |
| Total Power | 360W |
| Maximum Suction | 1000 m³/h |
| Exhaust Pipe Diameter | 150 mm |
| Product Dimensions (L×W×H) | 900 mm × 480 mm × 600‑1075 mm |
| Net Weight | 17 kg |
| Gross Weight | 21.62 kg |
The minimum distance is 750 mm from the cooker hood to a gas hob.
Clean and/or replace the grease filter after the specified period, using a damp cloth and neutral detergent; avoid using steel wool or harsh chemicals.
