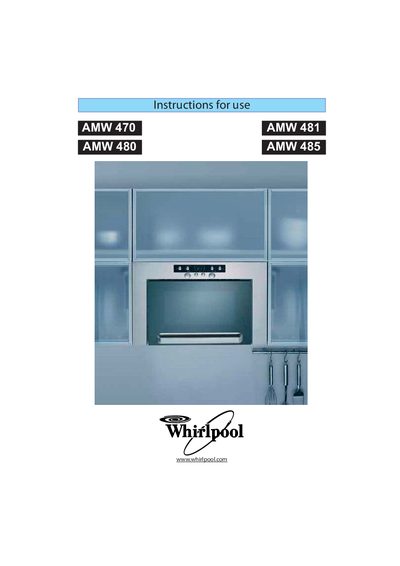

This document is a user manual for Whirlpool AMW 470 microwave oven, which introduces the usage of microwave oven, including installation, operation, etc.
This manual explains how to install the Whirlpool AMW series microwave oven safely, including checking the rating plate voltage, mounting requirements, and the need for a qualified technician for permanent connections. It also covers essential safety precautions such as avoiding flammable materials, proper use of accessories, and child‑lock operation.
The guide details everyday functions like setting the clock, using the timer, operating the Jet Defrost and Crisp‑Plate features, and pausing or stopping cooking. Technical data, dimensions, and power specifications are listed at the end for reference.
| Supply voltage | 230/50 Hz |
|---|---|
| Rated power input | 1900 W (UK 2030 W) |
| Fuse rating | 10 A (UK 13 A) |
| Microwave output power | 750 W |
| Built‑in dimensions | 382 × 495 × 320 mm |
| Oven compartment dimensions | 187 × 370 × 290 mm |
Press the Clock button for 3 seconds until the hour digit flickers, use the +/- buttons to set hours, press Clock again for minutes, set them with +/‑, then press Clock once more to confirm.
Yes. Open the door to pause; the setting is held for up to 10 minutes. Close the door and press Start once to resume cooking.
The child‑lock activates automatically one minute after the oven returns to stand‑by mode and prevents operation until the door is opened and closed again.
