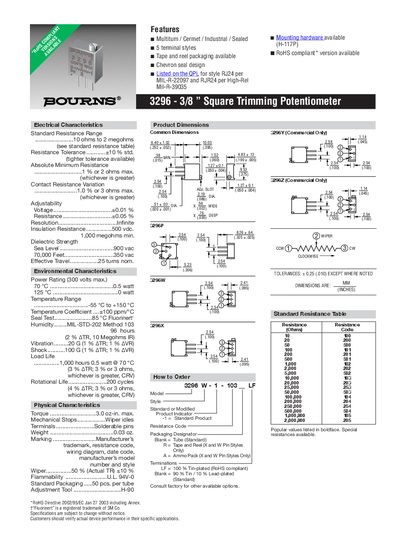

3296 - 3/8 ” Square Trimming Potentiometer is a multiturn/cermet/industrial/sealed potentiometer with 5 terminal styles, tape and reel packaging available, chevron seal design, listed on the QPL for style RJ24 per MIL-R-22097 and RJR24 per High-Rel Mil-R-39035, mounting hardware available (H-117P), and RoHS compliant* version available
The 3296 series is a multiturn, cermet, industrial‑grade square trimming potentiometer offered by Bourns. It is supplied in several terminal styles and includes options such as tape‑and‑reel or tube packaging.
Key specifications include a resistance range from –10 Ω to 2 MΩ, a tolerance of ±10 % (with tighter options), 0 % or 3 Ω contact resistance variation, and a power rating of 0.5 W at 70 °C. The device also meets RoHS requirements and provides a torque of 3.0 oz‑in max.
| Standard Resistance Range | -10 Ω to 2 MΩ |
|---|---|
| Resistance Tolerance | ±10 % (standard) |
| Contact Resistance Variation | 0 % or 3 Ω max |
| Insulation Resistance | 1,000 MΩ min |
| Temperature Coefficient | 100 ppm/°C |
| Torque | 3.0 oz‑in max |
| Packaging Options | Tube, tape‑and‑reel, ammo pack |
The standard resistance range is –10 Ω to 2 MΩ.
It can be supplied in tube (standard), tape‑and‑reel, or ammo‑pack formats.
The maximum torque is 3.0 oz‑in.
