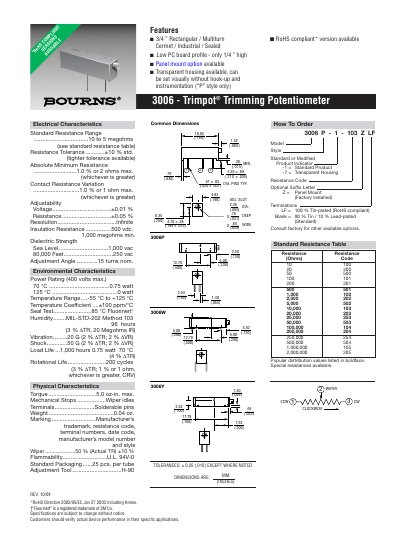

The document describes the features and characteristics of 3006 - Trimpot® Trimming Potentiometer, including standard resistance range, adjustability voltage, and environmental durability.
The 3006 Trimpot® trimming potentiometer is a 3/4" rectangular, multiturn cermet device designed for industrial and sealed‑environment applications. It offers a low PCB profile, panel‑mount and transparent‑housing options, and is available in a RoHS‑compliant version.
The datasheet lists the standard resistance range, tolerance, power rating, temperature limits, adjustment angle, mechanical dimensions, and ordering codes. Environmental characteristics such as seal test, humidity, vibration, and shock ratings are also provided.
| Standard Resistance Range | 10 to 5 megohms |
|---|---|
| Resistance Tolerance | ±10 % std. |
| Insulation Resistance | 500 VDC, 1,000 MΩ min. |
| Power Rating (70 °C) | 0.75 W |
| Temperature Range | -55 °C to +125 °C |
| Adjustment Angle | 15 turns nominal |
| Torque | 5.0 oz‑in max. |
| Weight | 0.04 oz |
It ranges from 10 Ω to 5 MΩ.
Yes, a RoHS‑compliant version is available.
The adjustment angle is 15 turns nominal.
