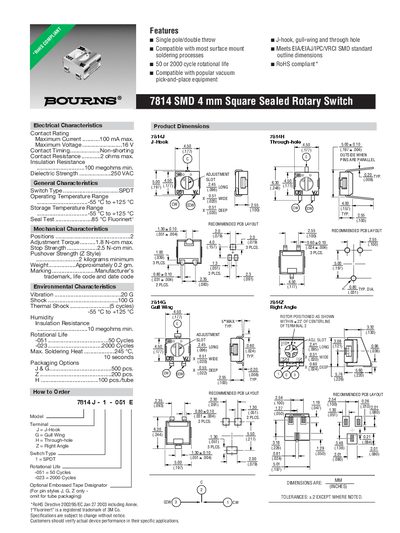

7814 SMD 4mm Square Sealed Rotary Switch specifications
This document describes the Bourns 7814 square sealed rotary switch, covering its features, electrical characteristics, mechanical dimensions, and environmental ratings. It includes details such as contact rating, dielectric strength, operating temperature range, and recommended PCB layout.
Packaging options, reel and tube specifications, as well as recommended soldering profiles are also provided, along with ordering codes for the different terminal styles (J‑Hook, Gull‑Wing, Through‑hole, Right‑Angle).
| Dielectric Strength | 250 VAC |
|---|---|
| Operating Temperature | -55 °C to +125 °C |
| Stop Strength | 2.5 N‑cm min. |
| Rotational Life | 2000 cycles |
| Weight | Approximately 0.2 g |
The switch is rated for 2000 cycles of operation.
It operates from –55 °C up to +125 °C.
The maximum soldering heat is 245 °C for up to 10 seconds.
Each tube contains 100 pieces.
