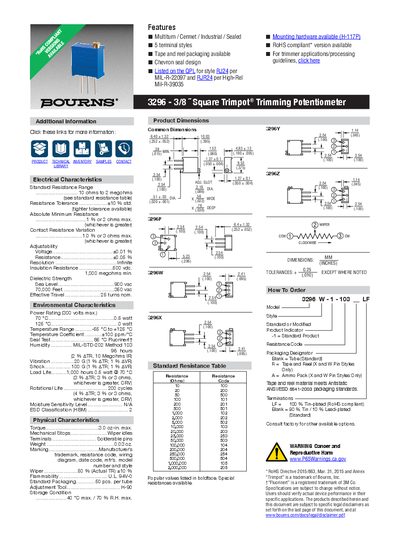

Bourns 3296 Square Trimpot Trimming Potentiometer Datasheet
The Bourns 3296 square trimpot is a multiturn, cermet, sealed trimming potentiometer available in five terminal styles. It offers a wide resistance range, tight tolerance options, and RoHS‑compliant versions for industrial applications.
The document provides detailed electrical characteristics, environmental limits, physical dimensions, packaging options, and ordering information, along with legal disclaimer and compliance notes.
Bourns 3296 specifications
| Resistance Range | 10 Ω to 2 MΩ |
|---|---|
| Resistance Tolerance | ±10 % (std.) |
| Power Rating (70 °C) | 0.5 W |
| Power Rating (125 °C) | 0 W |
| Temperature Range | -55 °C to +125 °C |
| Insulation Resistance | 500 VDC, 1,000 MΩ min. |
| Torque | 3.0 oz‑in max |
| Packaging – Units per Tube | 50 pcs |
