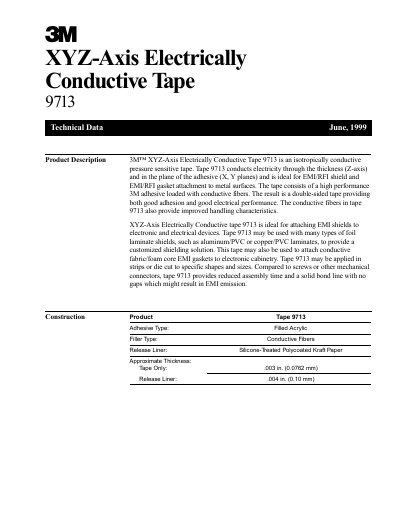

3M™ XYZ-Axis Electrically Conductive Tape 9713 is an isotropically conductive pressure sensitive tape. Tape 9713 conducts electricity through the thickness (Z-axis) and in the plane of the adhesive (X, Y planes) and is ideal for EMI/RFI shield and EMI/RFI gasket attachment to metal surfaces. The tape consists of a high performance 3M adhesive loaded with conductive fibers. The result is a double-sided tape providing both good adhesion and good electrical performance. The conductive fibers in tape 9713 also provide improved handling characteristics. XYZ-Axis Electrically Conductive tape 9713 is ideal for attaching EMI shields to electronic and electrical devices. Tape 9713 may be used with many types of foil laminate shields, such as aluminum/PVC or copper/PVC laminates, to provide a customized shielding solution. This tape may also be used to attach conductive fabric/foam core EMI gaskets to electronic cabinetry. Tape 9713 may be applied in strips or die cut to specific shapes and sizes. Compared to screws or other mechanical connectors, tape 9713 provides reduced assembly time and a solid bond line with no gaps which might result in EMI emission.
The XYZ‑Axis Electrically Conductive Tape 9713 is a pressure‑sensitive, isotropically conductive tape that conducts electricity through its thickness (Z‑axis) and in the adhesive plane (X‑Y). It combines a high‑performance 3M adhesive loaded with conductive fibers to provide a double‑sided tape with good adhesion and low electrical resistance, ideal for attaching EMI/RFI shields and gaskets to metal surfaces.
The tape can be supplied in strips or die‑cut shapes, and is compatible with foil laminate shields such as aluminum/PVC or copper/PVC. Application guidelines recommend clean, dry surfaces, a temperature range of 60 °F‑100 °F (15 °C‑38 °C), and a minimum overlap of 1/4 in (6 mm). The product offers a 24‑month shelf life and can be removed with torque or peeling, optionally using 3M Packaging Tape to aid removal.
| Adhesive Type | Filled Acrylic |
|---|---|
| Filler Type | Conductive Fibers |
| Tape Thickness | 0.003 in (0.0762 mm) |
| Release Liner Thickness | 0.004 in (0.10 mm) |
| Total Mass Loss (TML) | 1.60 % |
| Collected Volatile Condensed Materials (CVCM) | 0.03 % |
| Water Vapor Recovered (WVR) | 0.36 % |
| Minimum Overlap Length | 1/4 in (6 mm) |
| Recommended Application Temperature | 60 °F‑100 °F (15 °C‑38 °C) |
| Shelf Life (in roll form) | 24 months |
| Available Widths | 1/4 inch – 14 inch |
Tape 9713 should be applied between 60 °F and 100 °F (15 °C‑38 °C) for optimal adhesion.
For rigid parts, use torque to separate; for flexible parts, peel the tape, optionally applying 3M Packaging Tape over the residue before removal.
A minimum overlap length of 1/4 in (6 mm) and a minimum overlap width of 1/8 in (3 mm) are recommended.
