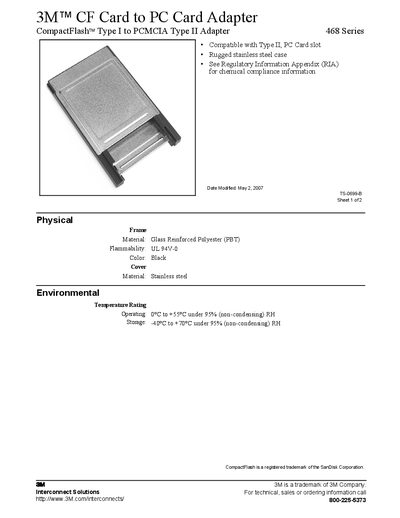

3M™ CF Card to PC Card Adapter CompactFlash™ Type I to PCMCIA Type II Adapter 468 Series is a rugged stainless steel case adapter that is compatible with Type II, PC Card slot.
The 3M 468 Series CompactFlash™ Type I to PCMCIA Type II adapter provides a rugged stainless‑steel case for converting CF cards to PC Card form factor. It is compatible with Type II PC Card slots and includes detailed pin‑length dimensions and ordering codes.
The adapter meets UL 94V‑0 flammability, operates from 0 °C to +55 °C (95 % RH) and can be stored from –40 °C to +70 °C (95 % RH). Regulatory appendices document RoHS compliance for the EU and China, and a one‑year limited warranty is included.
| Frame material | Glass Reinforced Polyester (PBT) |
|---|---|
| Cover material | Stainless steel |
| Flammability rating | UL 94V‑0 |
| Color | Black |
| Operating temperature | 0 °C to +55 °C (95 % RH) |
| Storage temperature | -40 °C to +70 °C (95 % RH) |
| Pin count | 16 pins |
It is a CompactFlash™ Type I to PCMCIA Type II adapter.
The adapter operates from 0 °C to +55 °C under 95 % non‑condensing relative humidity.
Yes, the product is RoHS compliant according to EU Directive 2002/95/EC.
