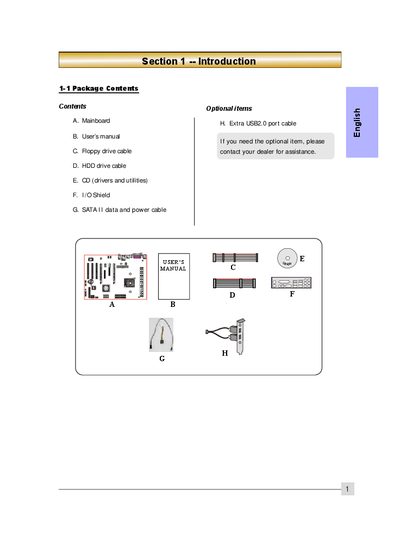

This document is an introduction to the English B A C D user manual, including package contents and mainboard features.
This manual introduces a Socket 754‑based motherboard designed for AMD Sempron/Athlon‑64 processors. It describes the board’s key components, such as the ULi M1697 chipset, dual PCI‑Express VGA slots, 10/100 Ethernet, SATA II ports with RAID support, and 6‑channel audio.
The guide covers installation steps, jumper settings, BIOS features, and hardware monitoring utilities, providing detailed diagrams and specifications for system builders and technicians.
| Supported Processor | AMD Sempron/Athlon‑64 up to 3700+ (Socket‑754) |
|---|---|
| Chipset | ULi M1697 |
| USB Ports | Eight USB 2.0 ports (4 rear, 4 front) |
| LAN | 10/100 Ethernet (Realtek RTL8201) |
| SATA | Four SATA II ports, up to 300 MB/s, RAID 0/1/0+1/5/JBOD |
| Audio | 6‑channel Realtek ALC655 AC'97 v2.3 codec |
| Form Factor | 305 mm × 220 mm ATX |
Yes, a jumper configurable PCI‑Express slot lets you select single‑VGA (x16) or dual‑VGA (x8) bandwidth.
