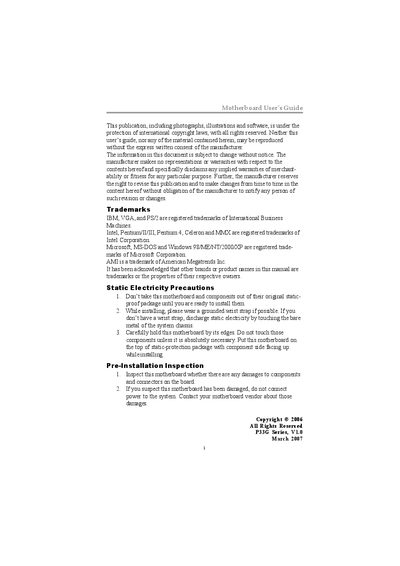

This is a user's guide for motherboard.
This manual covers the key features of the P33G Series motherboard, including its LGA775 socket, SiS671FX Northbridge, SiS968 Southbridge, DDR2 memory support, and various I/O ports. It also provides detailed steps for hardware installation, BIOS configuration, and bundled software setup.
Safety precautions, pre‑installation inspection, and optional accessories are described, along with troubleshooting tips for driver installation under Windows operating systems.
| CPU Socket | LGA775 |
|---|---|
| Supported Processors | Intel® Core™2 Duo / Celeron® D |
| Front‑Side Bus Speed | Up to 1066 MHz |
| Chipset | SiS671FX Northbridge, SiS968 Southbridge |
| Memory Type | DDR2 SDRAM, up to 4 GB |
| PCI Express Slots | One x16, one x1 |
| PCI Slots | Two 32‑bit PCI slots |
| Form Factor | Micro ATX (244 mm × 210 mm) |
It uses an LGA775 socket for Intel Core2 Duo and Celeron D processors.
The board supports up to 4 GB of DDR2 SDRAM.
The board measures 244 mm by 210 mm and follows the Micro ATX form factor.
