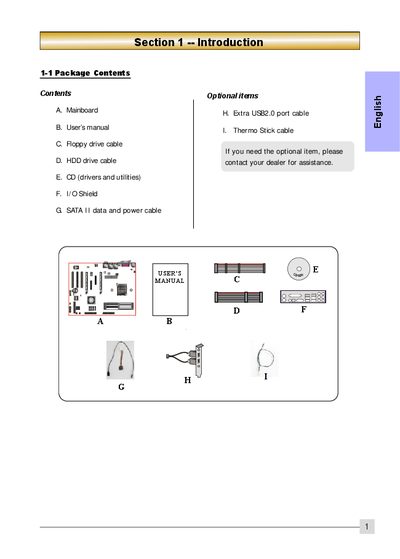

This is a motherboard manual, which contains the package contents, the mainboard's features and characteristics, and the mainboard's usage
The document describes the features of a Socket 939 motherboard, including support for AMD Sempron/Athlon processors, ULi M1697 chipset, dual‑channel DDR memory, PCI‑Express slots, USB2.0 ports, Gigabit and 10/100 LAN, SATA‑II with RAID, and optional audio codecs. It also outlines special BIOS utilities such as Ghost BIOS, Thunder Probe, and PowerBIOS.
Installation instructions cover jumper settings for clearing CMOS, configuring PCI‑Express bandwidth, and using the optional EZ‑Button and Thermo Stick. The manual includes a system block diagram, detailed specifications, and descriptions of front‑panel and rear‑panel connectors.
| Supported processors | AMD Sempron/Athlon‑64/Athlon‑64 FX/Athlon X2 up to 4800+ |
|---|---|
| Chipset | ULi M1697 |
| Memory slots | Four 184‑pin DDR SDRAM DIMM sockets, up to 4 GB |
| Memory type | DDR‑333/400, dual channel |
| USB ports | Eight USB2.0 ports (four rear, four extra) |
The motherboard includes eight USB2.0 ports, four on the rear panel and four extra connectors.
