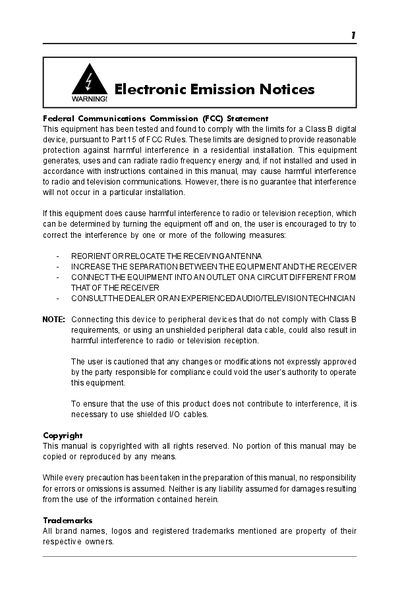

This document introduces a FCC verified digital device that has certain features and functions, and provides instructions for hardware installation.
This manual covers the hardware configuration of the RS480 motherboard, including key features such as the ATI RS480/RX480+SB400 chipset, support for AMD K8 processors in a Socket754 package, and on‑board voltage regulator modules with a 0.800 V to 1.55 V range. It details the layout of connectors, jumpers, and expansion slots, as well as the integrated audio, video, LAN, and USB interfaces.
Additional sections describe BIOS setup options, power‑management features, RAID configuration, driver installation, and safety precautions such as static‑electricity handling. The rear‑panel and motherboard layout diagrams help users locate ports and connectors for proper installation and troubleshooting.
| Chipset | ATI RS480/RX480+SB400 |
|---|---|
| Supported Processor | AMD K8 in Socket754 |
| VRM Voltage Range | 0.800 V to 1.55 V in 25 mV steps |
| Memory Slots | Two 184‑pin DDR SDRAM sockets |
| Supported DDR Memory Types | 266/333/400 MHz DDR SDRAM |
| USB Ports | Eight USB ports (four via two headers) |
| SATA Ports | Four SATA ports, 150 Mb/s |
| LAN Controller | Realtek RTL8100C/RTL8110S (10/100/1000 Mb/s optional) |
The board provides eight USB ports, four of which are available via two internal headers.
It supports AMD K8 processors in a Socket754 package.
The VRM can be adjusted from 0.800 V to 1.55 V in 25 mV steps.
It uses the ATI RS480/RX480+SB400 chipset.
