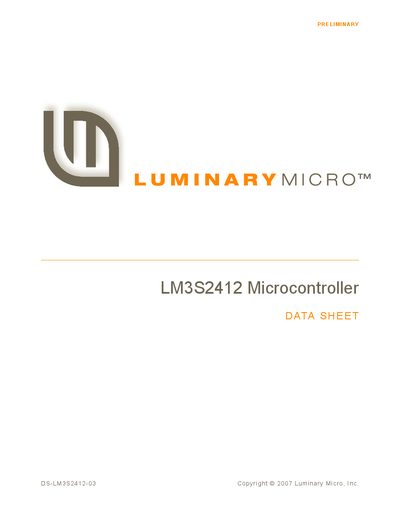

This document describes the features and characteristics of the LM3S2412 microcontroller, including intellectual property rights, product specification changes, etc.
The LM3S2412 is an ARM Cortex‑M3‑based microcontroller offered by Luminary Micro. The datasheet provides a high‑level block diagram, functional overview of core, memory, and peripheral modules, and detailed register descriptions.
Key sections include the Cortex‑M3 core description, memory map, interrupt controller, flash memory characteristics, timer modules, CAN controller, PWM, ADC, and package ordering information. The document also lists ordering codes, package options, and contact details for support.
| Core | ARM Cortex‑M3 |
|---|---|
| Maximum Clock Frequency | 50 MHz |
| Part Number (25 MHz version) | LM3S2412‑1QC25 |
The LM3S2412 is manufactured by Luminary Micro, Inc.
The 25 MHz version is identified as LM3S2412‑1QC25.
The device can operate up to 50 MHz.
