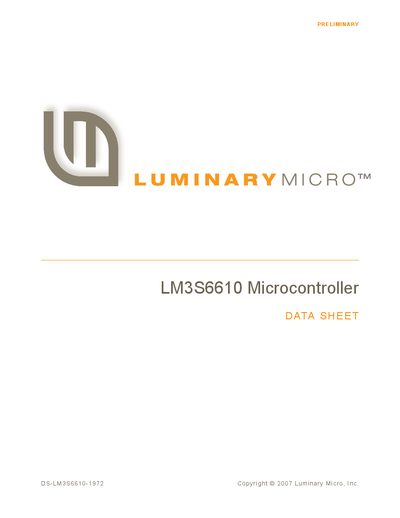

This datasheet provides information on the LM3S6610 microcontroller, including its features, registers, instruction set, and pin definitions.
The LM3S6610 is an ARM Cortex‑M3‑based microcontroller from Luminary Micro. The datasheet provides a detailed architectural overview, functional block diagrams, and peripheral descriptions such as UART, I2C, SSI, Ethernet, PWM, and GPIO.
It also includes electrical characteristics, maximum ratings, package options, and ordering information for developers and system designers who need precise specifications for hardware integration.
| Maximum operating frequency | 50 MHz |
|---|---|
| Part number for 25 MHz version | LM3S6610‑1QC25 |
| On‑chip LDO regulator | Integrated low‑dropout regulator |
The LM3S6610 can operate up to 50 MHz.
The 25 MHz version is identified as LM3S6610‑1QC25.
Yes, it includes an integrated low‑dropout regulator.
