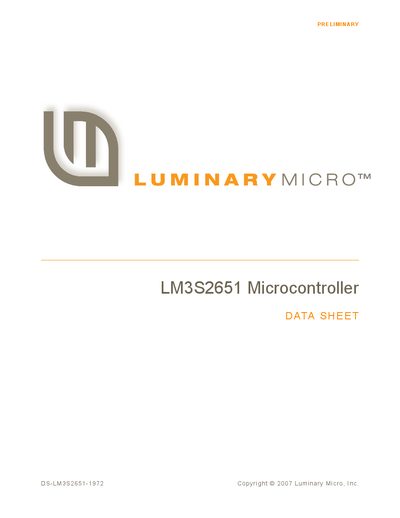

Luminary Micro LM3S2651 Microcontroller Datasheet

About this manual

The LM3S2651 datasheet provides a complete description of the microcontroller’s architecture, peripheral set, and electrical characteristics. It includes block diagrams, functional overviews, and detailed register maps for all on‑chip modules.

Key sections cover the ARM Cortex‑M3 core, memory map, JTAG interface, power control, timers, ADC, UART, I2C, CAN, PWM, and package ordering information, helping engineers design and program the device efficiently.

What's inside

• Architectural Overview
• ARM Cortex‑M3 Processor Core
• Memory Map
• JTAG Interface
• System Control
• Power Control
• General‑Purpose Timers
• Analog‑to‑Digital Converter (ADC)
• Universal Asynchronous Receiver/Transmitter (UART)
• Controller Area Network (CAN)

Specifications

Frequently asked questions

What is the part number for the LM3S2651 in a 100‑pin LQFP package?

The part number is LM3S2651‑lQC50.

Which core architecture does the LM3S2651 use?

It uses an ARM Cortex‑M3 core.
