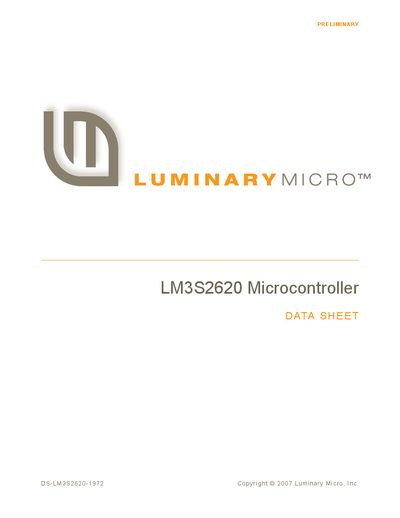

Luminary Micro LM3S2620 Datasheet

About this manual

The LM3S2620 is a 32‑bit ARM Cortex‑M3 based microcontroller from Luminary Micro, offering a range of peripherals such as GPIO, timers, UART, I2C, CAN, PWM, and analog comparators. It targets embedded applications that require high performance with low power consumption.

The document contains an architectural overview, detailed functional descriptions of each peripheral, memory maps, electrical characteristics, package information, and ordering details. It also includes a quick reference for registers and contact information for support and ordering.

What's inside

• Architectural Overview
• ARM Cortex‑M3 Processor Core
• Memory Map
• General‑Purpose I/O (GPIO)
• Timers and PWM
• UART
• I2C Interface
• CAN Module
• Analog Comparators
• Package Information

Specifications

Frequently asked questions

What is the part number for the LM3S2620 in a 48‑pin LQFP, 25 MHz package?

The part number is LM3S2620‑1QC25.

How can I obtain technical support for Luminary Micro products?

Contact [email protected] or call +1‑512‑279‑8800 ext. 3.

Which processor core does the LM3S2620 use?

It uses an ARM Cortex‑M3 core.
