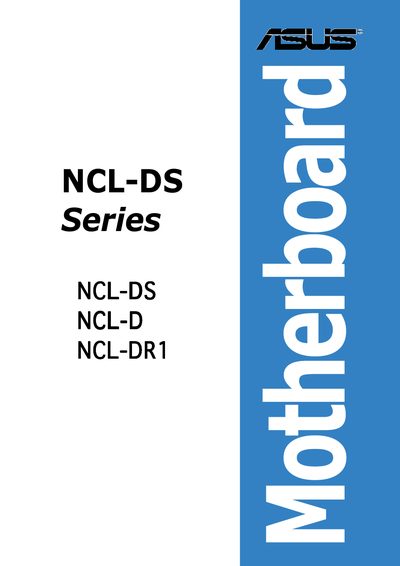

This manual introduces the features and usage of ASUS NCL-DS series motherboards.
This guide covers the ASUS NCL‑DS series motherboards (NCL‑DS, NCL‑D, NCL‑DR1). It includes product introduction, hardware setup, power‑up procedures, BIOS configuration, and reference diagrams. The manual also contains safety instructions and regulatory compliance details.
Safety information explains how to disconnect power before handling the system, avoid short circuits, and seek professional assistance when needed. FCC and Canadian compliance statements confirm that the device meets Part 15 Class B digital device requirements.
| Processor | Intel Xeon Processor with 800 MHz system bus |
|---|---|
| System bus | 64‑bit, 800 MHz |
| Memory slots | 8 DDR DIMM slots, max 16 GB |
| PCI Express | X8 PCI Express PCI‑X 1.0 bus (64‑bit/133 MHz) |
The device complies with Part 15 of the FCC Rules and is classified as a Class B digital device.
Disconnect the power cable from the outlet, unplug all power cables before adding or removing devices, and keep metal objects away from connectors.
Additional information and product updates are available on the ASUS website.
