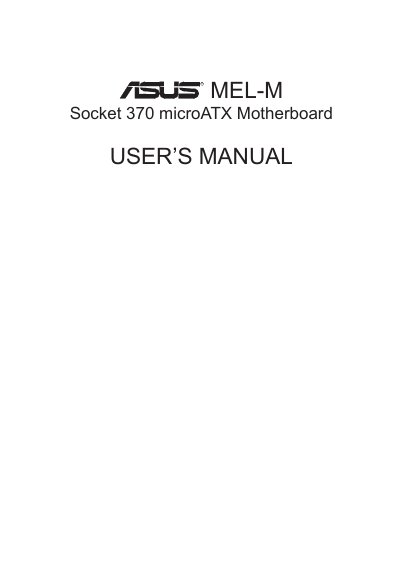

This document is the user manual for ASUS MEL-M Socket 370 microATX motherboard. The manual describes the features and characteristics of the motherboard.
This manual covers the ASUS MEL-M microATX motherboard, detailing its features, hardware installation steps, BIOS configuration, and included support software. It also includes safety notices, FCC compliance information, and contact details for ASUS technical support.
The document is organized into sections such as Introduction, Features, Hardware Setup, BIOS Setup, Software Setup, Software Reference, and an Appendix with utility tools and optional modules. Checklists and diagrams guide users through installing the CPU, memory, expansion cards, and connecting power and peripherals.
| Processor Support | Intel Celeron Socket 370 (PPGA) |
|---|---|
| Chipset | Intel 440LX AGPset with 66 MHz front‑side bus |
| Audio | Yamaha AC’97 codec (optional) |
| Expansion Slots | Three 32‑bit PCI slots, one 16‑bit ISA slot |
| Wake‑On‑LAN | Supported via optional ASUS PCI‑L101 Fast Ethernet card |
| PC Health Monitoring | On‑board ASIC monitors voltages, temperatures, fan status |
| I/O Ports | Two UART‑compatible serial ports, one parallel port with EPP/ECP |
It supports Intel’s Celeron processor for Socket 370 in a Plastic Pin Grid Array package.
It provides three 32‑bit PCI slots and one 16‑bit ISA slot.
Yes, Wake‑On‑LAN is supported through an optional ASUS PCI‑L101 Fast Ethernet card or a compatible Ethernet card.
