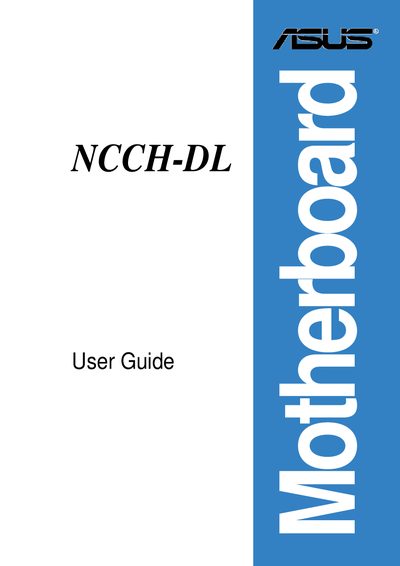

This is a user manual for a motherboard
This guide explains how to install and configure the ASUS NCCH-DL motherboard. It covers product highlights, hardware installation steps, power‑up sequence, BIOS setup procedures, and includes an appendix with reference diagrams and specifications.\n\nSafety instructions, FCC and Canadian compliance statements, and troubleshooting advice are also provided to help users avoid electrical hazards and reduce possible radio‑frequency interference.
| CPU | Intel Xeon 800 MHz |
|---|---|
| North Bridge | Intel 6300ESB (South Bridge) – 4 × 2‑channel DDR DIMM |
| AGP slot | AGP Pro 4x/8x 128‑bit sockets |
| PCI‑X slots | 2 × PCI‑X slots (HubLink Bus) |
| USB ports | 4 × USB1.1/2.0 ports |
| Serial ATA ports | 2 × Serial ATA ports |
| Audio codec | ADI AD1980 / TI TSB43AB22A (AC'97) |
Disconnect the power cable from the electrical outlet before moving the system.
Reorient or relocate the receiving antenna, increase separation between equipment and receiver, or connect the equipment to a different circuit.
