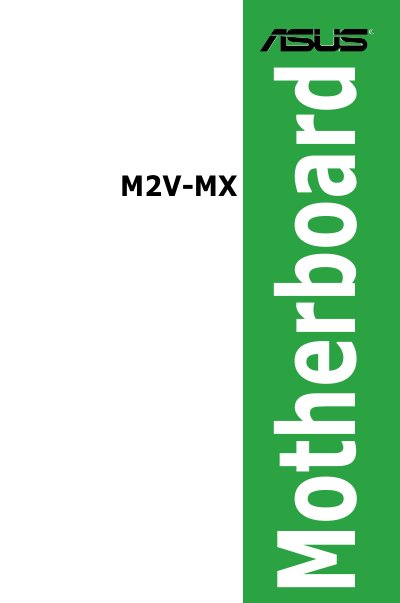

This is a user manual for M2V-MX ii motherboard
This manual introduces the ASUS M2V-MX motherboard, covering safety information, hardware overview, installation procedures, BIOS configuration, and software utilities. It guides users through connecting power, installing the CPU, memory, expansion cards, and configuring system settings.
The specifications summary details the supported AMD socket AM2 processors, DDR2 memory options, expansion slots, integrated graphics, storage interfaces, audio and networking components, and USB connectivity. It also lists special features such as AMD64 architecture, Cool ‘n’ Quiet technology, and RAID support.
| Chipset | VIA K8M890 |
|---|---|
| Memory | 2 x 240‑pin DIMM sockets, up to 4 GB DDR2 800/667/533 MHz |
| Expansion slots | 1 PCI Express x16, 2 PCI |
| Graphics | Integrated VIA DeltaChrome GPU, up to 256 MB shared memory |
| Storage interfaces | 2 SATA 3.0 Gb/s ports, RAID 0/1/JBOD |
| Audio | Realtek ALC883 6‑channel CODEC |
| LAN | Realtek RTL8100C 10/100 Ethernet |
| USB ports | Up to 8 USB 2.0 ports |
Disconnect the power cable from the electrical outlet before relocating the system.
It supports up to eight USB 2.0 ports.
