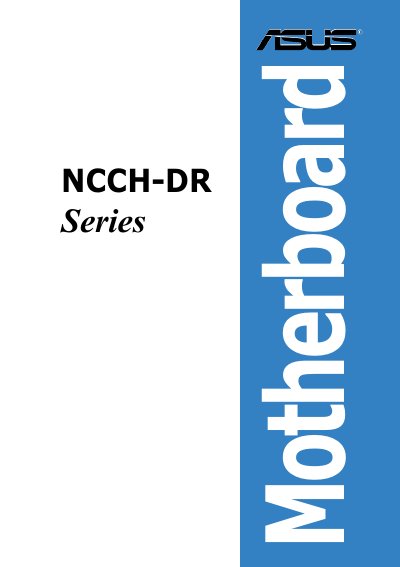

This is a manual for the ASUS NCCH-DR Series motherboard.
This manual guides users through installing and configuring the ASUS NCCH-DR server motherboard. It covers product highlights, hardware components, power‑up procedures, and BIOS setup, along with safety notices and FCC compliance statements.
The document is organized into chapters on product introduction, hardware information, powering up, BIOS setup, and an appendix with reference diagrams. It also includes detailed safety instructions and troubleshooting tips for technicians and end‑users.
| Supported CPU | Intel Xeon™ with 800 MHz system bus |
|---|---|
| System bus | 64‑bit, 800 MHz |
| Memory slots | 4 × DDR400 DIMM (max 4 GB) |
| BIOS flash memory | 8 Mbit |
Disconnect the power cable from the outlet, unplug all power cables before adding or removing devices, keep metal objects away from connectors, and avoid dust, humidity, and temperature extremes.
The board supports up to four DDR400 DIMM modules for a maximum of 4 GB of RAM.
