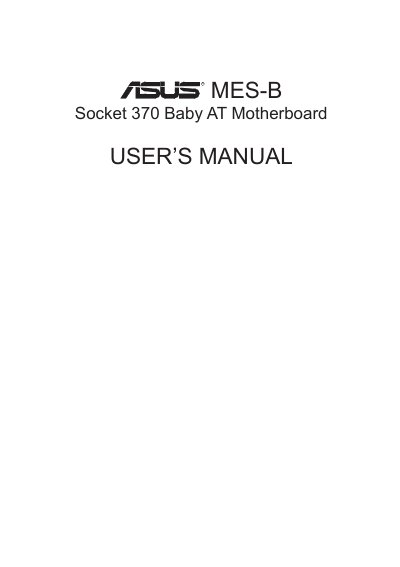

This document is the user manual for ASUS MES-B Socket 370 Baby AT Motherboard. It describes the features and characteristics of the motherboard.
This manual covers the ASUS MES-B motherboard, detailing the introduction, features, hardware setup, BIOS configuration, software installation, and reference material. It includes a checklist of items supplied with the board and safety notices.
The MES-B is a Socket 370 motherboard with integrated SiS 620 AGP graphics, support for Intel Celeron CPUs, up to 768 MB of SDRAM across three DIMM slots, optional 8 MB dedicated video memory, ESS Solo‑1 audio, multiple expansion slots, and Wake‑On‑LAN capability.
| Processor Support | Intel Celeron (Socket 370 PPGA) |
|---|---|
| Graphics Controller | SiS 620 AGPset with 6326 AGP 2X graphics |
| Front Side Bus | 100 MHz |
| UltraDMA Transfer Rate | 66 MB/s |
| Memory Capacity | Up to 768 MB SDRAM (3 DIMM sockets) |
| Audio Chipset | ESS Solo‑1 PCI audio |
| Expansion Slots | 4 PCI x32, 2 ISA x16 |
| Wake‑On‑LAN | Supported via optional Ethernet card |
| Serial/Parallel Ports | 2 UART serial ports, 1 parallel port (EPP/ECP) |
It supports Intel’s Celeron processor designed for the Socket 370 PPGA.
The board has three DIMM sockets and can hold up to 768 MB of PC100‑compatible SDRAM.
Yes, it includes a SiS 620 AGPset with a 6326 AGP 2X graphics controller that can use up to 8 MB of dedicated video memory.
