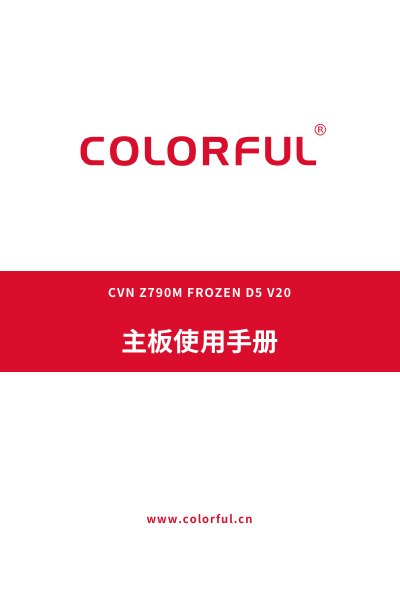

Colorful CVN Z790M FROZEN D5 V20 Motherboard User Manual

Official user manual for the Colorful CVN Z790M FROZEN D5 V20 motherboard, covering installation, specifications, BIOS setup and warranty.

Brand: Colorful
Document type: User Manual
Language: Chinese
Pages: 58
File format: PDF
File size: 2.8 MB
Published: 06 October, 2026
Updated: 06 October, 2026
MD5 checksum: 756ADC3E7282F6D863627794108408CB
PDF: Colorful CVN Z790M FROZEN D5 V20 Motherboard User Manual PDF

About this manual

This manual provides step‑by‑step instructions for hardware installation, driver setup, and BIOS configuration of the Colorful CVN Z790M FROZEN D5 V20 motherboard. It also includes detailed product specifications, I/O interface descriptions, and troubleshooting guidance.

Additional sections cover warranty information, safety notices, and contact details for technical support, helping users safely assemble and maintain their system. This manual is written in Chinese.

What's inside

Product Packaging
Hardware Installation
Driver Installation
Product Specification
I/O Interface Introduction
Motherboard Layout
CPU Socket
Memory Slots
PCIe Expansion Slots
M.2 Slots

Specifications

Chipset	Intel Z790
CPU Socket	LGA 1700, supports 12th/13th Gen Intel Core, Pentium, Celeron
PCIe Slots	1 × PCIe 5.0 x16, 1 × PCIe 3.0 x4
Audio Codec	Realtek ALC897, supports 5.1 channel

Frequently asked questions

What does the ME write protection jumper control?

It controls whether the BIOS firmware can be written; short‑circuiting the jumper disables BIOS write protection, allowing updates.
