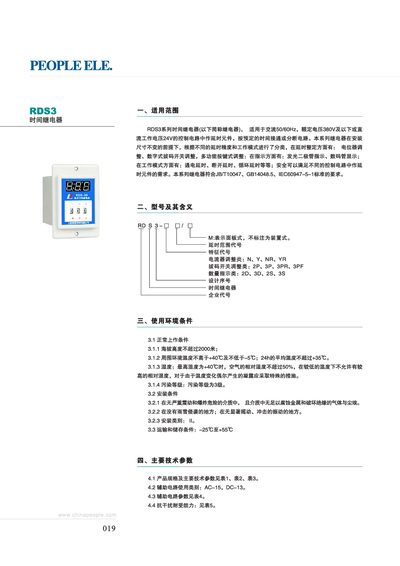

The RDS3 series time relays from PEOPLE ELE are designed for AC 50/60 Hz and DC control circuits up to 24 V. The manual covers general description, model identification, operating conditions, installation requirements, and technical parameters.
Technical data such as rated voltage, contact capacity, mechanical life, and mounting options are listed in detailed tables, and safety information for temperature and environmental limits is provided. This manual is written in Chinese.
| Rated voltage | AC220V 5A |
|---|---|
| Input voltage | DC24V |
| Mechanical life | 1 × 10⁴ cycles |
| Operating temperature range | -25 °C to +55 °C |
| Mounting type | Panel‑mount or 35 mm DIN rail |
The relay is rated for AC220 V at 5 A contact capacity.
The mechanical life is specified as 1 × 10⁴ operations.
It can operate from –25 °C up to +55 °C.
It can be installed as a panel‑mount unit or on a 35 mm DIN rail.
