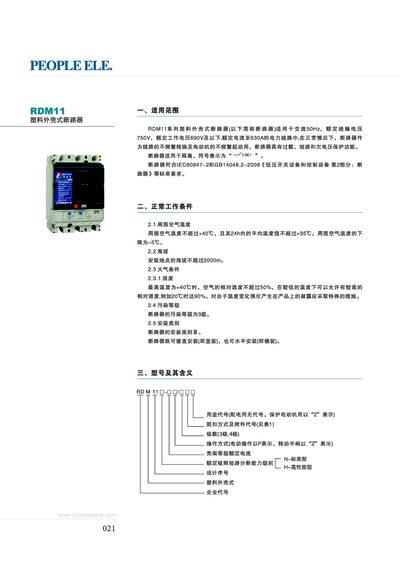

This manual covers the RDM11 series molded case circuit breakers, describing their applicable range, operating conditions, and model designations. It includes detailed technical parameters, performance characteristics, dimensions, and ordering information.
The document provides tables of rated currents, short‑circuit breaking capacities, pollution degree, and installation dimensions, as well as instructions for setting trip units and wiring configurations. This manual is written in Chinese.
| Rated voltage | 690 V |
|---|---|
| Rated current (RDM11‑100) | 100 A |
| Pollution degree | 3 |
| Maximum ambient temperature | +40 °C |
| Maximum installation altitude | 2000 m |
The rated voltage is 690 V.
The ambient temperature may not exceed +40 °C, with a 24‑hour average not exceeding +35 °C.
Yes, it can be installed either vertically or horizontally.
It is rated for pollution degree 3.
