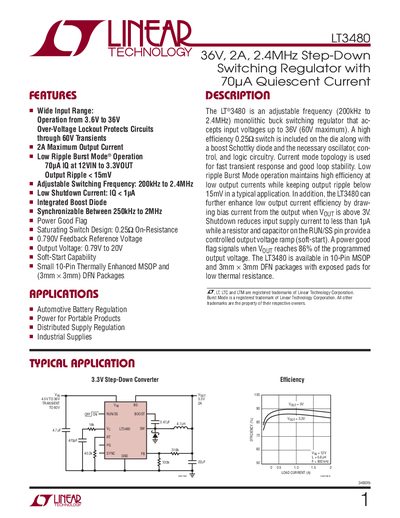

This product is a 36V, 2A, 2.4MHz step-down switching regulator with 70µA quiescent current.
The LT3480 is a monolithic buck switching regulator that operates from 3.6 V to 36 V input and delivers up to 2 A output current. It features an adjustable switching frequency from 200 kHz to 2.4 MHz, a 0.79 V feedback reference, and a low quiescent current of 70 pA at 12 V input. Burst‑mode operation reduces input current to about 70 µA under light load.
Typical applications include automotive battery regulation, power for portable products, distributed supply regulation, and industrial supplies. The device is available in 10‑lead MSOP, 10‑lead MSE, and 3 mm × 3 mm DFN packages with exposed pads for thermal management.
| Input Voltage Range | 3.6 V to 36 V |
|---|---|
| Maximum Output Current | 2 A |
| Feedback Reference Voltage | 0.790 V |
| Quiescent Current | 70 pA (typical at 12 V IN) |
| Adjustable Switching Frequency | 200 kHz to 2.4 MHz |
The LT3480 operates from a minimum of 3.6 V up to 36 V input.
It can deliver up to 2 A of output current.
The quiescent current is about 70 pA.
The internal reference voltage on the FB pin is 0.790 V.
