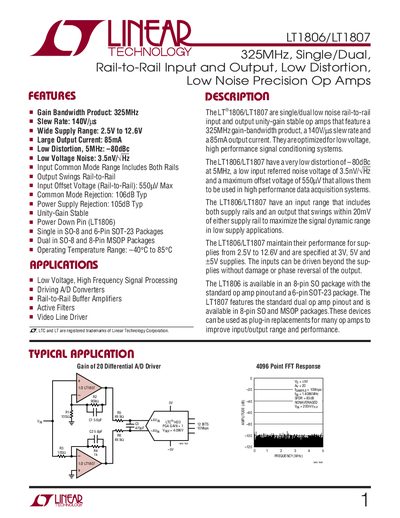

The LT1806/LT1807 are single/dual low noise rail-to-rail input and output unity-gain stable op amps that feature a 325MHz gain-bandwidth product, a 140V/µs slew rate and a 85mA output current. They are optimized for low voltage, high performance signal conditioning systems. The LT1806/LT1807 have a very low distortion of –80dBc at 5MHz, a low input referred noise voltage of 3.5nV/√Hz and a maximum offset voltage of 550µV that allows them to be used in high performance data acquisition systems. The LT1806/LT1807 have an input range that includes both supply rails and an output that swings within 20mV of either supply rail to maximize the signal dynamic range in low supply applications. The LT1806/LT1807 maintain their performance for supplies from 2.5V to 12.6V and are specified at 3V, 5V and ±5V supplies. The inputs can be driven beyond the supplies without damage or phase reversal of the output. The LT1806 is available in an 8-pin SO package with the standard op amp pinout and a 6-pin SOT-23 package. The LT1807 features the standard dual op amp pinout and is available in 8-pin SO and MSOP packages.These devices can be used as plug-in replacements for many op amps to improve input/output range and performance.
The LT1806 (single) and LT1807 (dual) are low‑noise, rail‑to‑rail input and output operational amplifiers with unity‑gain stability. They feature a 325 MHz gain‑bandwidth product, 140 V/µs slew rate, and up to 85 mA output current, making them suitable for high‑performance signal‑conditioning circuits.
Typical applications include low‑voltage, high‑frequency signal processing, A/D driver circuits, active filters, video line drivers, and photodiode transimpedance amplifiers. The devices are offered in 6‑pin SOT‑23, 8‑pin SO, and 8‑pin MSOP packages, with detailed package dimensions and ordering information provided.
| Gain Bandwidth Product | 325 MHz |
|---|---|
| Slew Rate | 140 V/µs |
| Supply Voltage Range | 2.5 V to 12.6 V |
| Maximum Output Current | 85 mA |
| Distortion (5 MHz) | -80 dBc |
| Input Noise Voltage Density | 3.5 nV/√Hz |
| Input Offset Voltage (max) | 550 µV |
| Common‑Mode Rejection Ratio (typ) | 106 dB |
| Power Supply Rejection Ratio (typ) | 105 dB |
The gain‑bandwidth product is 325 MHz.
They operate from 2.5 V up to 12.6 V.
They can source up to 85 mA of output current.
The input noise voltage density is 3.5 nV/√Hz.
