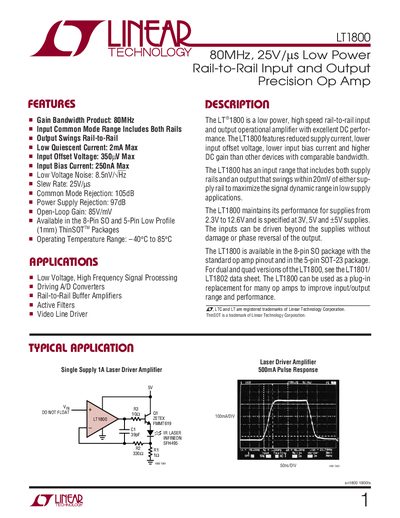

The LT1800 is a low power, high speed, rail-to-rail input and output operational amplifier with excellent DC perfor- mance.
The LT1800 is a low‑power, high‑speed operational amplifier that features rail‑to‑rail input and output, a gain‑bandwidth product of 80 MHz, and a slew rate of 25 V/µs. It operates from 2.3 V to 12.6 V supply voltage and maintains performance over a temperature range of –40 °C to 85 °C.
Typical applications include low‑voltage, high‑frequency signal processing, driving A/D converters, rail‑to‑rail buffer amplifiers, active filters, and video line drivers. The device is offered in 8‑pin SO and 5‑pin ThinSOT (SOT‑23) packages for flexible board layout.
| Gain Bandwidth Product | 80 MHz |
|---|---|
| Slew Rate | 25 V/µs |
| Input Offset Voltage | 350 µV max |
| Input Bias Current | 250 nA max |
| Power Supply Rejection Ratio | 97 dB |
| Common Mode Rejection Ratio | 105 dB |
| Supply Voltage Range | 2.3 V to 12.6 V |
| Operating Temperature Range | –40 °C to 85 °C |
| Quiescent Current | 2 mA max |
The LT1800 can tolerate a total supply voltage up to 12.6 V.
The typical slew rate is 25 V/µs.
It is offered in an 8‑pin SO package and a 5‑pin ThinSOT (SOT‑23) low‑profile package.
The input offset voltage is specified as 350 µV maximum (typical 125 µV).
