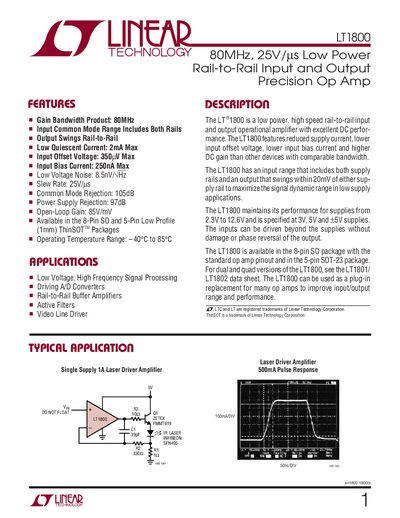

The LT1800 is a low power, high speed, rail-to-rail input and output operational amplifier with excellent DC performance.
The LT1800 is a low‑power, high‑speed operational amplifier with rail‑to‑rail input and output capability. It offers a gain‑bandwidth product of 80 MHz, a slew rate of 25 V/µs, and low quiescent current (2 mA max), making it suitable for battery‑powered and high‑frequency designs.
Typical applications include low‑voltage high‑frequency signal processing, driving A/D converters, rail‑to‑rail buffer stages, active filters, video line drivers, and precision amplification for laser drivers. The device is offered in 8‑pin SO and 5‑pin ThinSOT packages and operates from 2.3 V to 12.6 V supply voltages.
| Gain Bandwidth Product | 80 MHz |
|---|---|
| Slew Rate | 25 V/µs |
| Input Offset Voltage | 350 µV max |
| Input Bias Current | 250 nA max |
| Power Supply Rejection Ratio | 97 dB |
| Common Mode Rejection Ratio | 105 dB |
| Operating Temperature Range | –40 °C to 85 °C |
| Output Swing | Rail‑to‑Rail within 20 mV of each rail |
The LT1800 has a gain‑bandwidth product of 80 MHz.
The LT1800 is offered in an 8‑pin SO package and a 5‑pin ThinSOT (TSOT‑23) package.
