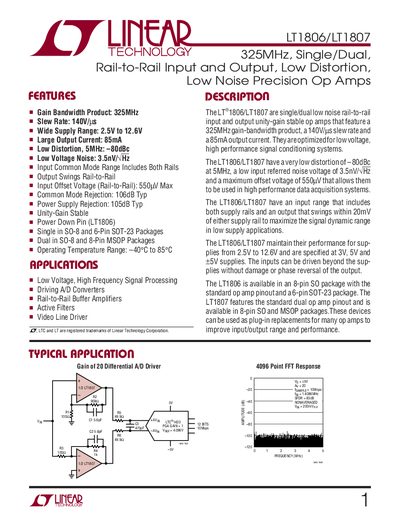

The LT1806/LT1807 are low noise, single/dual channel, rail to rail input and output unity gain stable op amps featuring a 325MHz gain bandwidth product, a 140V/μs slew rate and an 85mA output current. They are optimized for low voltage, high performance signal conditioning systems. The LT1806/LT1807 have a very low distortion of –80dBc at 5MHz, a low input referred noise voltage of 3.5nV/√Hz and a maximum offset voltage of 550μV that allows them to be used in high performance data acquisition systems. The LT1806/LT1807 have an input range that includes both supply rails and an output that swings within 20mV of either supply rail to maximize the signal dynamic range in low supply applications. The LT1806/LT1807 maintain their performance for supplies from 2.5V to 12.6V and are specifi ed at 3V, 5V and ±5V supplies. The inputs can be driven beyond the supplies without damage or phase reversal of the output. The LT1806 is available in an 8-pin SO package with the standard op amp pinout and a 6-pin SOT-23 package. The LT1807 features the standard dual op amp pinout and is available in 8-pin SO and MSOP packages.These devices can be used as plug-in replacements for many op amps to improve input/output range and performance.
The LT1806 and LT1807 are single‑ and dual‑channel, low‑noise, rail‑to‑rail input and output operational amplifiers. They feature a 325 MHz gain‑bandwidth product, 140 V/µs slew rate, and can operate from 2.5 V to 12.6 V supply.
The document provides detailed electrical characteristics, absolute maximum ratings, package dimensions, typical photodiode amplifier applications, and a list of related Linear Technology parts.
| Gain Bandwidth Product | 325 MHz |
|---|---|
| Slew Rate | 140 V/µs |
| Supply Voltage Range | 2.5 V to 12.6 V |
| Maximum Output Current | 85 mA |
| Input Offset Voltage (max) | 550 µV |
| Common‑Mode Rejection Ratio | 106 dB typ |
| Power Supply Rejection Ratio | 105 dB typ |
| Input Noise Voltage Density | 3.5 nV/√Hz at 10 kHz |
| Input Noise Current Density | 1.5 pA/√Hz at 10 kHz |
The gain‑bandwidth product is 325 MHz.
They operate from 2.5 V up to 12.6 V.
The devices can source up to 85 mA of output current.
The input offset voltage is specified up to 550 µV (max).
