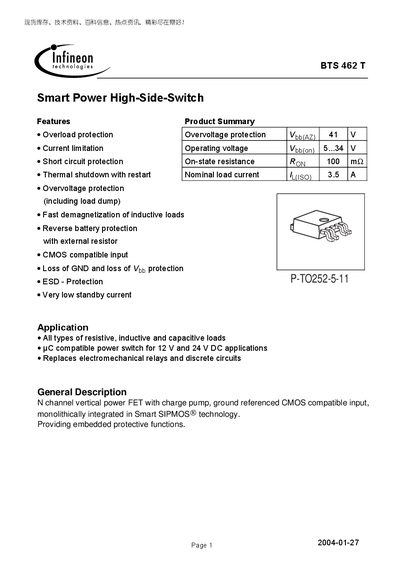

BTS 462 T is a smart power high-side switch with overload protection, current limitation, short circuit protection, thermal shutdown and restart, overvoltage protection (including load dump), fast demagnetization of inductive loads, reverse battery protection with external resistor, CMOS compatible input, loss of GND and loss of Vbb protection, ESD - protection and very low standby current.
The Infineon BTS462T is a smart‑power high‑side switch offering overload, over‑voltage, short‑circuit, reverse‑battery and thermal protection. It integrates a vertical N‑channel power FET with a charge pump and CMOS‑compatible input, suitable for 12 V and 24 V DC applications and compatible with micro‑controller control signals.
The datasheet provides detailed electrical characteristics, maximum ratings, pin configuration, protection functions and package dimensions. Key parameters include a 40 V supply rating, 100 mΩ on‑state resistance, 3.5 A nominal load current, and fast turn‑on/turn‑off times for inductive load switching.
