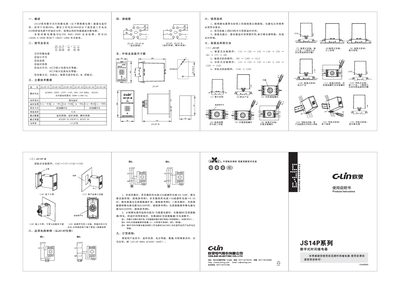

This manual describes the JS14P series digital time relay, including its overview, model codes, physical dimensions, and key technical data. It explains how to correctly wire the relay according to the label diagram and how to set the delay time using the BCD switches on the panel.
Installation methods such as panel‑mount, DIN‑rail, and screw‑mount are covered, along with example application circuits and ordering information. Safety notes and compliance with Chinese standards Q/ZXL 0081‑2009, GB 14048‑2008 and JB/T 10047‑1999 are also included. This manual is written in Chinese.
| Rated voltage | AC 380V, 220V, 127V, 110V, 36V, 24V; DC 24V |
|---|---|
| Action type | Power‑on delay |
| Delay range | 0.1 s – 99 s |
| Setting method | 2‑digit or 3‑digit BCD switch |
| Contact capacity | AC 220V 3 A; DC 24V 5 A |
Use the BCD switches on the front panel to preset the desired delay time.
Connect the relay according to the wiring diagram printed on its label.
It supports AC voltages of 380 V, 220 V, 127 V, 110 V, 36 V, 24 V and a DC voltage of 24 V.
