The HHS3P series digital time relay from Xinling is designed for AC power control circuits up to 380 V and DC 24 V, offering high precision, long life, and flexible timing functions. It replaces older AH2 series relays and adds improved accuracy and reliability.

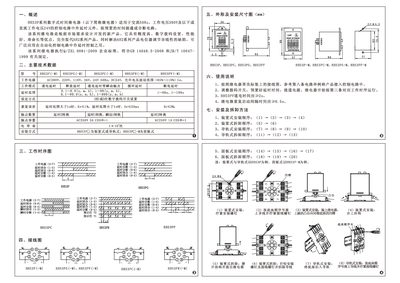

The manual includes an overview, main technical data, usage instructions, installation and removal procedures, operation sequences, wiring ranges, safety notes, and application examples, guiding users through setup and troubleshooting. This manual is written in Chinese.
| Power supply (AC) | 380 V, 220 V, 110 V, 36 V, 24 V 50 Hz |
|---|---|
| Contact rating | AC 250 V 3 A |
| Adjustable time delay range | 0.1 – 99.9 seconds/minutes/hours |
| Maximum time setting | 0.1 – 999 seconds/minutes/hours |
It can operate from AC 380 V, 220 V, 110 V, 36 V, 24 V at 50 Hz and also from a DC 24 V source.
The contacts are rated for AC 250 V at 3 A.
The adjustable delay can be set from 0.1 to 99.9 seconds, minutes, or hours.
