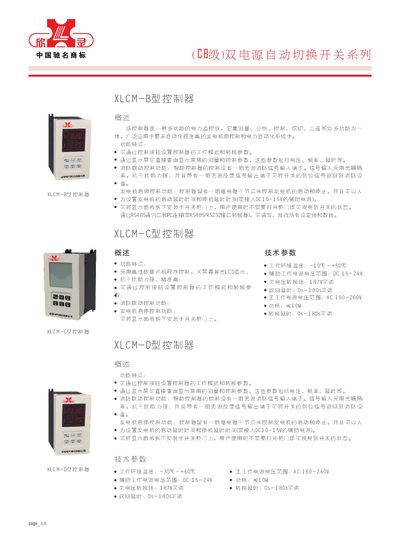

The XLCM-C type controller is a multi-function power monitoring instrument that integrates many functions such as measurement, analysis, control, protection, and three-remote into one. It is widely used in high-automation generator set control and power automation systems. Product features include the ability to set the controller's working mode and conversion parameters through the control buttons, the ability to directly query and display common measurement and control parameters through the display screen, fire linkage control function, generator start-stop control function, and the ability to remove the display panel and install it on the switch cabinet door.
The XLCM‑B controller is a multifunctional power monitoring device that integrates measurement, analysis, control, protection, and remote functions. It is widely used in generator set control and power automation systems requiring high automation.
Key functions include mode and parameter setting via control buttons, on‑screen display of voltage, frequency and delay values, fire‑linkage control with optocoupler‑isolated inputs and passive feedback outputs, generator start/stop control via relay dry contacts, detachable display panel for cabinet‑free observation, and RS485 communication for PC configuration. This manual is written in Chinese.
| Operating Temperature | -10 °C to +50 °C |
|---|---|
| Main Power Supply Voltage | AC 160 V–260 V |
| Undervoltage Conversion Value | Adjustable up to 187 V |
| Conversion Delay | 0 s–180 s adjustable |
| Return Delay | 0 s–180 s adjustable |
Yes, the display panel can be detached and installed on the switchgear door, allowing observation without opening the cabinet.
The controller includes an RS485 communication port that can be connected to a PC via an RS485/RS232 converter for reading and writing settings.
It has passive fire signal input terminals with optocoupler isolation and provides passive feedback output terminals to return switch status to the fire system.
The controller provides a set of relay dry contacts that can be used to start and stop the generator, with adjustable start and stop delay times.
