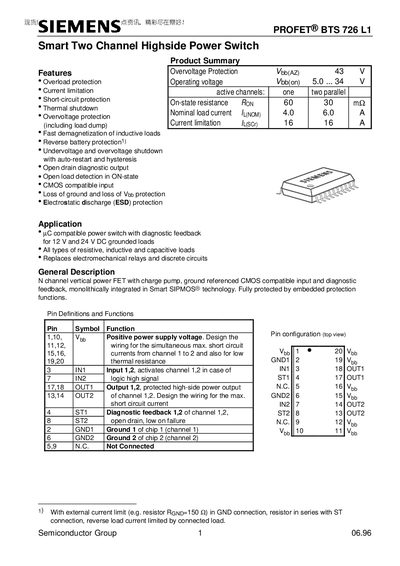

This document describes the features of the PROFET® BTS 726 L1 Semiconductor Group 1 06.96, including overload protection, current limitation, short-circuit protection, thermal shutdown, overvoltage protection, etc. It is a µC compatible power switch with diagnostic feedback for 12V and 24V DC grounded loads. It can replace electromechanical relays and discrete circuits.
The BTS 726 L1 is a Smart Two‑Channel High‑Side Power Switch designed for 12 V and 24 V DC grounded loads. It replaces electromechanical relays and offers diagnostic feedback, over‑voltage, overload, short‑circuit, thermal shutdown, reverse‑battery and ESD protection.
The document lists electrical characteristics, maximum ratings, pin definitions, and protection functions for each channel, along with package dimensions and ordering codes. It is intended for designers and engineers who need detailed performance data for integration into electronic systems.
| Operating voltage (Vob(on)) | 9.0 … 34 V |
|---|---|
| Thermal shutdown nominal load | 6.0 A |
| Input voltage (DC) | -10 … +16 V |
| On‑state resistance (Ron) | 50 … 60 mΩ |
It is a two‑channel high‑side power switch.
The typical on‑state resistance is between 50 mΩ and 60 mΩ.
