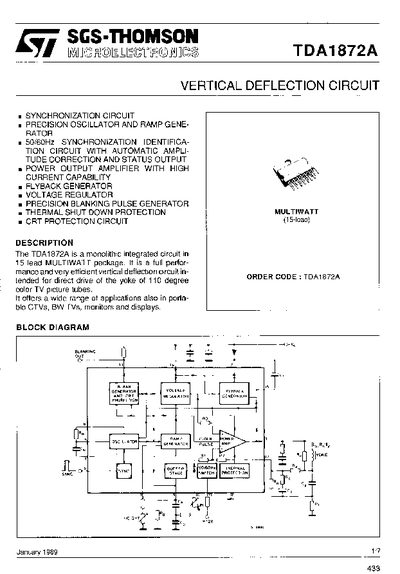

The TDA1872A is a monolithic integrated circuit in a 15‑lead MULTIWATT package designed for direct drive of the yoke of 110° colour TV picture tubes. It can also be used in portable CTVs, black‑and‑white TVs, monitors and displays.
The document contains a block diagram, pin‑out diagram, absolute maximum ratings, thermal data, DC and AC electrical characteristics, and several example application circuits that illustrate how to use the internal ramp generator, synchronization, blanking and flyback functions.
| Supply Voltage (Pin 14) | 36 V |
|---|---|
| Flyback Peak Voltage | 60 V |
| Synchronous Input Voltage | 20 V |
| Output Current (non‑repetitive, t=20 ms) | 3 A |
| Maximum Power Dissipation (Tcase < 60 °C) | 30 W |
| Storage Temperature Range | -40 °C to 150 °C |
| Thermal Junction‑Case Resistance | 3 °C/W |
| Thermal Junction‑Ambient Resistance | 40 °C/W |
| Quiescent Current (Pin 2) | 20 mA – 40 mA |
The supply voltage at Pin 14 is 36 V.
Maximum power dissipation at a case temperature below 60 °C is 30 W.
The flyback peak voltage is rated at 60 V.
The device can be stored from –40 °C up to 150 °C.
