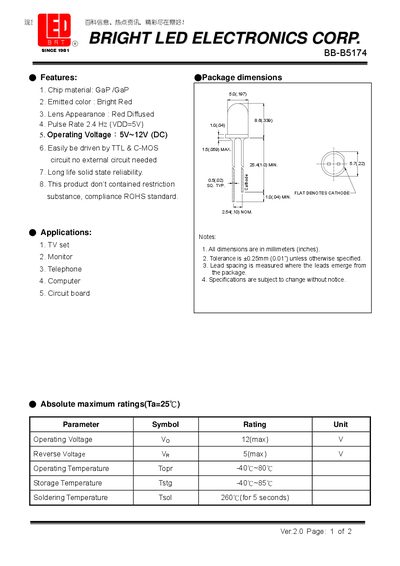

This datasheet provides BBRIG GHHTT LED ELECTRONICS CORP. BB-BB55117744 LED's detailed parameters, including package dimensions, pin definition, applications, features, voltage, temperature, etc.
The BB‑B5174 is a red diffused LED manufactured by Bright LED Electronics. It features a GaP chip material, bright red emission, and a lens that provides a diffused light output. The device is designed for easy TTL and CMOS drive without external circuitry and complies with RoHS standards.
The datasheet lists the electrical and optical parameters such as a 5 V‑12 V operating voltage, 2.4 Hz pulse rate, 700 nm peak wavelength, 45° viewing angle, and detailed package dimensions. It also includes typical characteristic curves for forward voltage, luminous intensity versus current, and temperature derating.
| Chip material | GaP /GaP |
|---|---|
| Emitted color | Bright Red |
| Lens appearance | Red Diffused |
| Pulse rate | 2.4 Hz |
| Operating voltage | 5 V ~ 12 V DC |
| Reverse voltage | 5 V (max) |
| Operating temperature | -40 °C ~ 80 °C |
| Storage temperature | -40 °C ~ 85 °C |
| Soldering temperature | 260 °C (5 s) |
| Peak wavelength | 700 nm |
| Dominant wavelength | 650 nm |
| Viewing angle | 45 ° |
The LED operates from 5 V to 12 V DC.
It can be used in TV sets, monitors, telephones, computers, and circuit boards.
The peak wavelength is 700 nm.
The viewing angle is 45 degrees.
