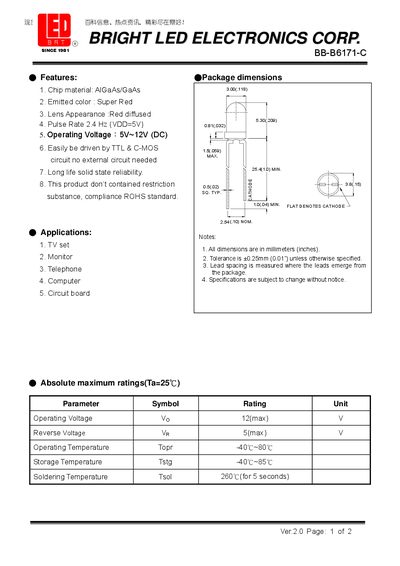

This data sheet provides the characteristics parameters of BBRRIIG GHHTT LED ELECTRO-OPTICS CO., LTD. BBBB-BB66117711-CC, including package dimensions, emitted color, pulse rate, operating voltage, applications, maximum ratings, electrical and optical characteristics.
The BB‑B6171‑C is a super‑red LED manufactured by Bright LED Electronics. It features a AlGaAs/GaAs chip, red diffused lens, and can be driven directly by TTL or CMOS circuits without external driver components.
The datasheet lists operating conditions (5 V‑12 V DC, 2.4 Hz pulse rate at 5 V), temperature limits, soldering parameters, and typical electro‑optical characteristics such as peak wavelength 660 nm, dominant wavelength 643 nm, and a 45° viewing angle. Applications include TV sets, monitors, telephones, computers and circuit boards.
| Chip material | AlGaAs/GaAs |
|---|---|
| Emitted color | Super Red |
| Lens appearance | Red diffused |
| Pulse rate (VDD=5V) | 2.4 Hz |
| Operating voltage | 5 V ~ 12 V DC |
| Drive type | TTL & C‑MOS |
| Operating temperature | -40 °C ~ 80 °C |
| Storage temperature | -40 °C ~ 85 °C |
| Soldering temperature | 260 °C for 5 s |
| Reverse voltage (max) | 5 V |
| Peak wavelength | 660 nm |
| Dominant wavelength | 643 nm |
| Spectral line half‑width | 20 nm |
| Viewing angle | 45° |
The LED operates from 5 V to 12 V DC.
At 5 V the pulse rate is 2.4 Hz.
Solder at 260 °C for about 5 seconds.
