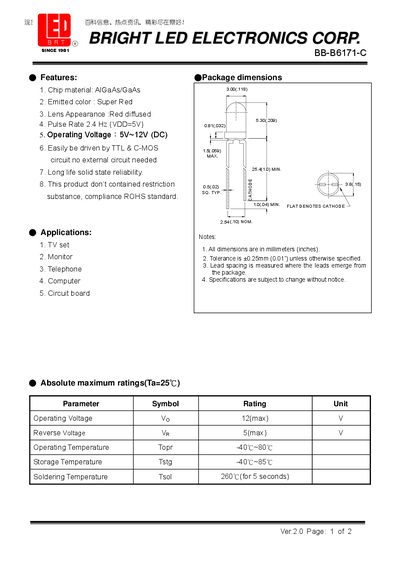

This PDF file is a LED data sheet, which introduces the product's package dimensions, emitted color, pulse rate, operating voltage, application scenarios and other information.
The BB‑B6171‑C is a super‑red LED manufactured by Bright LED Electronics Corp. The datasheet provides detailed electrical, optical, and mechanical parameters, along with recommended operating conditions and application examples such as TV sets, monitors, telephones, computers, and circuit boards.
Key features include a pulse rate of 2.4 Hz (typical), operating voltage range of 5 V to 12 V DC, and compliance with RoHS standards. The document also lists absolute maximum ratings, temperature limits, and typical electro‑optical characteristic curves.
| Chip material | AlGaAs/GaAs |
|---|---|
| Emitted color | Super Red |
| Lens appearance | Red diffused |
| Pulse rate (typical) | 2.4 Hz |
| Operating voltage | 5 V ~ 12 V DC |
| Reverse voltage (max) | 5 V |
| Operating temperature range | -40 °C ~ 80 °C |
| Storage temperature range | -40 °C ~ 85 °C |
| Soldering temperature (max, 5 s) | 260 °C |
The LED operates from 5 V to 12 V DC.
The typical pulse rate is 2.4 Hz at a VDD of 5 V.
Yes, the product complies with RoHS standards.
