This datasheet is about BBRIGGHHTT LED ELECTRONICS CORP. BB-BB33117711-C. It mainly introduces the features, characteristics, applications, package dimensions, working voltage, working temperature and other information of this product.

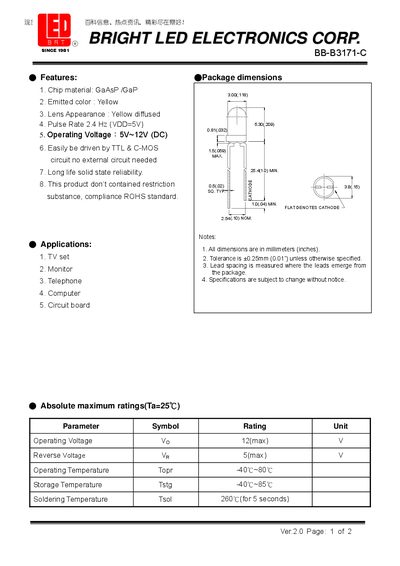

The BB‑B3171‑C is a yellow‑emitting surface‑mount LED from Bright LED Electronics. The datasheet provides detailed information on its chip material, package dimensions, and typical applications such as TV sets, monitors, telephones, computers and circuit boards.
Key electrical and optical characteristics are listed, including operating voltage, pulse rate, luminous intensity, wavelength specifications, and temperature limits. Graphs illustrate forward current versus voltage and luminous intensity versus temperature.
| Chip material | GaAsP /GaP |
|---|---|
| Emitted color | Yellow |
| Lens appearance | Yellow diffused |
| Pulse rate (VDD=5V) | 2.4 Hz |
| Operating voltage | 5 V ~ 12 V DC |
| Reverse voltage (max) | 5 V |
| Operating temperature | -40 °C ~ 80 °C |
| Storage temperature | -40 °C ~ 85 °C |
| Soldering temperature | 260 °C (5 s) |
| Luminous intensity (25 mA) | 20 mcd (typ) |
| Peak wavelength (20 mA) | 585 nm |
| Dominant wavelength (20 mA) | 582 nm ~ 595 nm |
| Spectral line half‑width (20 mA) | 35 nm |
| Viewing angle (20 mA) | 45 ° |
The LED operates from 5 V to 12 V DC.
It emits a yellow color.
The pulse rate is 2.4 Hz when VDD is 5 V.
The maximum reverse voltage is 5 V.
