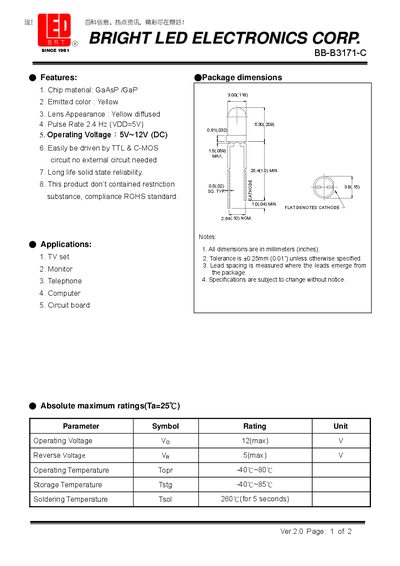

This document describes the features and characteristics of the BB331711-CC model LED produced by BRIGHT LED ELECTRONICS CO., including chip material, emitted color, lens appearance, pulse rate, and operating voltage.
The BB‑B3171‑C is a yellow diffused surface‑mount LED manufactured by Bright LED Electronics. It is designed for use in TV sets, monitors, telephones, computers and circuit boards. The device operates from 5 V to 12 V DC and can be driven directly by TTL or CMOS circuits without external components.
Key electrical specifications include a reverse voltage rating of 5 V, operating temperature range of –40 °C to 80 °C, and a typical pulse rate of 2.4 Hz at a 5 V supply. Optical characteristics feature a peak wavelength around 585 nm, dominant wavelength 582‑595 nm, and a 45° viewing angle.
| Chip material | GaAsP / GaP |
|---|---|
| Emitted color | Yellow |
| Lens appearance | Yellow diffused |
| Pulse rate (VDD=5V) | 2.4 Hz |
| Operating voltage | 5 V ~ 12 V DC |
| Reverse voltage (max) | 5 V |
| Operating temperature | -40 °C ~ 80 °C |
| Storage temperature | -40 °C ~ 85 °C |
| Soldering temperature (5 s) | 260 °C |
The LED operates from 5 V to 12 V DC.
It can be used in TV sets, monitors, telephones, computers and circuit boards.
The LED emits a yellow color.
The typical pulse rate is 2.4 Hz when VDD is 5 V.
