This document introduces the features and characteristics of the LED product, model BBB-BB44117711-CC, produced by BBRRIIG GHHTT LLEEDD EELLEECCTTRRO ONNIICCSS CCO ORRPP. It includes chip material, emitted color, lens appearance, pulse rate, operating voltage, etc. The product can be widely used in TV sets, monitors, telephones, computers, and circuit boards. Additionally, the product has the advantages of long life and high reliability, and complies with ROHS standards.

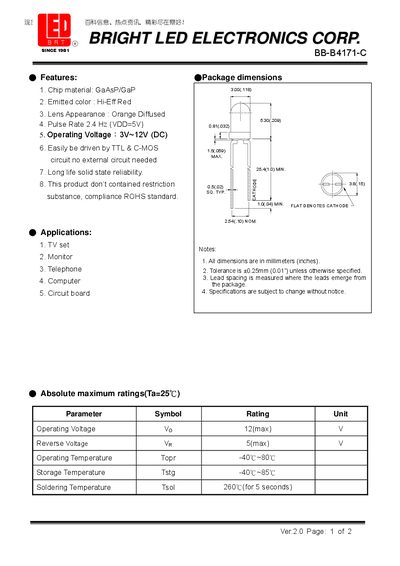

The BB‑B4171‑C LED from Bright LED Electronics features a GaAsP/GaP chip material, orange diffused lens, and emits a high‑efficiency red light. It operates from 3 V to 12 V DC, can be driven directly by TTL or CMOS circuits, and has a typical pulse rate of 2.4 Hz at 5 V.
Designed for TV sets and monitors, the component meets ROHS standards and offers a long solid‑state life. Absolute maximum ratings include a reverse voltage of 5 V, operating temperature from –40 °C to 80 °C, and a soldering temperature of 260 °C for up to 5 seconds.
| Chip material | GaAsP/GaP |
|---|---|
| Emitted color | Hi‑Eff Red |
| Lens appearance | Orange Diffused |
| Pulse rate | 2.4 Hz (VDD=5 V) |
| Operating voltage | 3 V ~ 12 V DC |
| Reverse voltage | 5 V (max) |
| Storage temperature | -40 °C ~ 85 °C |
| Soldering temperature | 260 °C for 5 s |
| Luminous intensity | 25 (typical) at 20 mA |
| Peak wavelength | 640 nm |
| Dominant wavelength | 617 nm ~ 638 nm |
| Spectral line half‑width | 40 nm |
| Viewing angle | 45° |
It operates from 3 V to 12 V DC.
The LED is intended for use in TV sets and monitors.
The typical pulse rate is 2.4 Hz when powered at 5 V.
