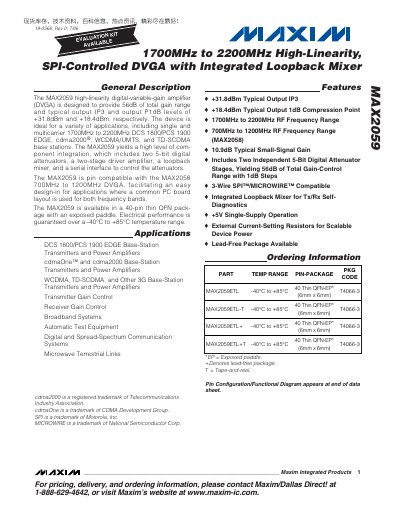

The MAX2059 high-linearity digital-variable-gain amplifier (DVGA) is designed to provide 56dB of total gain range and typical output IP3 and output P1dB levels of +31.8dBm and +18.4dBm, respectively. The device is ideal for a variety of applications, including single and multicarrier 1700MHz to 2200MHz DCS 1800/PCS 1900 EDGE, cdma2000®, WCDMA/UMTS, and TD-SCDMA base stations. The MAX2059 yields a high level of component integration, which includes two 5-bit digital attenuators, a two-stage driver amplifier, a loopback mixer, and a serial interface to control the attenuators. The MAX2059 is pin compatible with the MAX2058 700MHz to 1200MHz DVGA, facilitating an easy design-in for applications where a common PC board layout is used for both frequency bands. The MAX2059 is available in a 40-pin thin QFN package with an exposed paddle. Electrical performance is guaranteed over a -40°C to +85°C temperature range.
The MAX2059 high‑linearity DVGA from Maxim Integrated provides a total gain range of 56 dB across 1700 MHz to 2200 MHz. It integrates two 5‑bit digital attenuators, a two‑stage driver amplifier, a loopback mixer, and a 3‑wire SPI interface for precise gain control.
The device is supplied in a 40‑pin thin QFN package, operates from –40 °C to +85 °C, and requires a single 5 V supply. It is pin‑compatible with the MAX2058, enabling easy design reuse for base‑station transmitter applications.
| RF Frequency Range | 1700 MHz to 2200 MHz |
|---|---|
| Total Gain‑Control Range | 56 dB |
| Typical Small‑Signal Gain | 10.9 dB |
| Typical Output IP3 | +31.8 dBm |
| Typical Output P1dB | +18.4 dBm |
| Package | 40‑pin thin QFN |
The MAX2059 provides a total gain‑control range of 56 dB.
The typical output third‑order intercept point is +31.8 dBm.
It is available in a 40‑pin thin QFN package with an exposed paddle.
