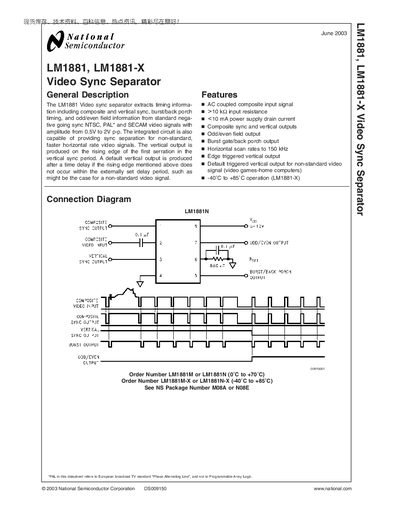

The LM1881, LM1881-X video sync separator is a typical IC application in video signal processing
The LM1881 video sync separator extracts timing information—including composite and vertical sync, burst/back‑porch and odd/even field data—from standard NTSC, PAL and SECAM video signals. It works with composite inputs from 0.5 V to 2 V p‑p and provides separate composite sync, vertical sync, burst gate/back‑porch and odd/even field outputs.
The device operates from a single 5 V‑12 V DC supply, offers up to 150 kHz horizontal scan rates, and is available in both standard (0 °C to +70 °C) and extended (‑40 °C to +85 °C) temperature ranges. Detailed electrical characteristics, absolute maximum ratings and application notes are included for designers.
| Supply Voltage | 5 V – 12 V DC |
|---|---|
| Power‑supply Drain Current | < 10 mA |
| Horizontal Scan Rate | up to 150 kHz |
| Operating Temperature (LM1881‑X) | ‑40 °C – +85 °C |
| Operating Temperature (LM1881) | 0 °C – +70 °C |
| Package Types | SOIC (MO8A) or DIP (NO8E) |
The LM1881 works from a single supply voltage between 5 V and 12 V DC.
The LM1881‑X is rated for operation from –40 °C to +85 °C.
The device supports horizontal scan rates up to 150 kHz.
